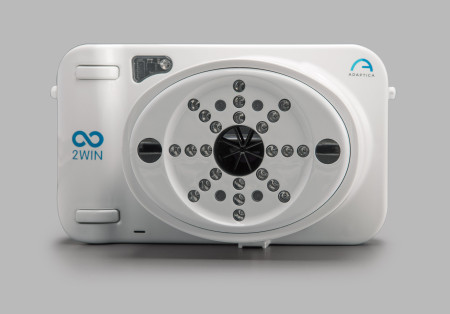

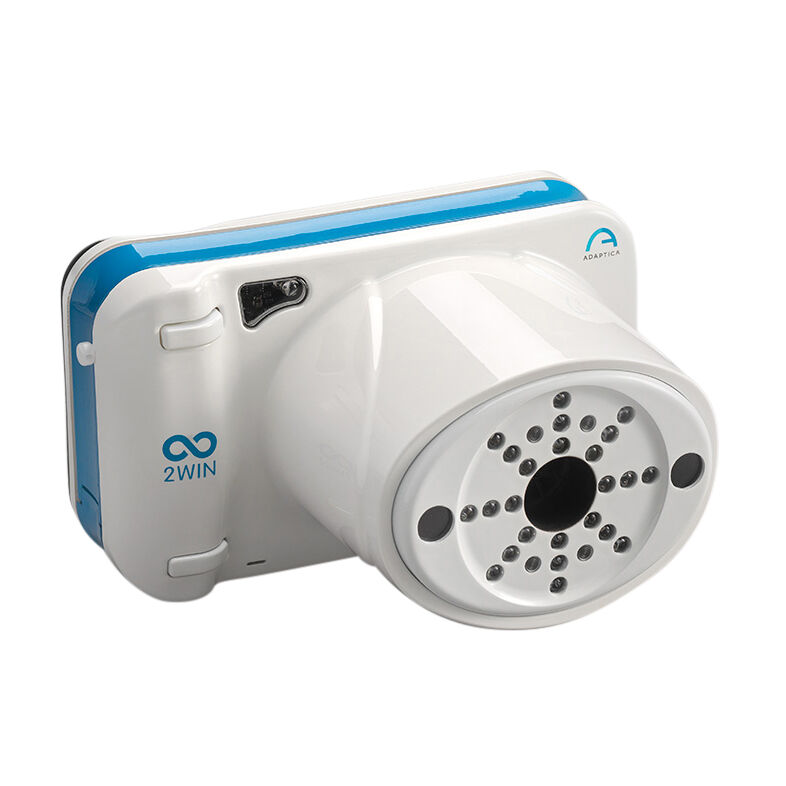

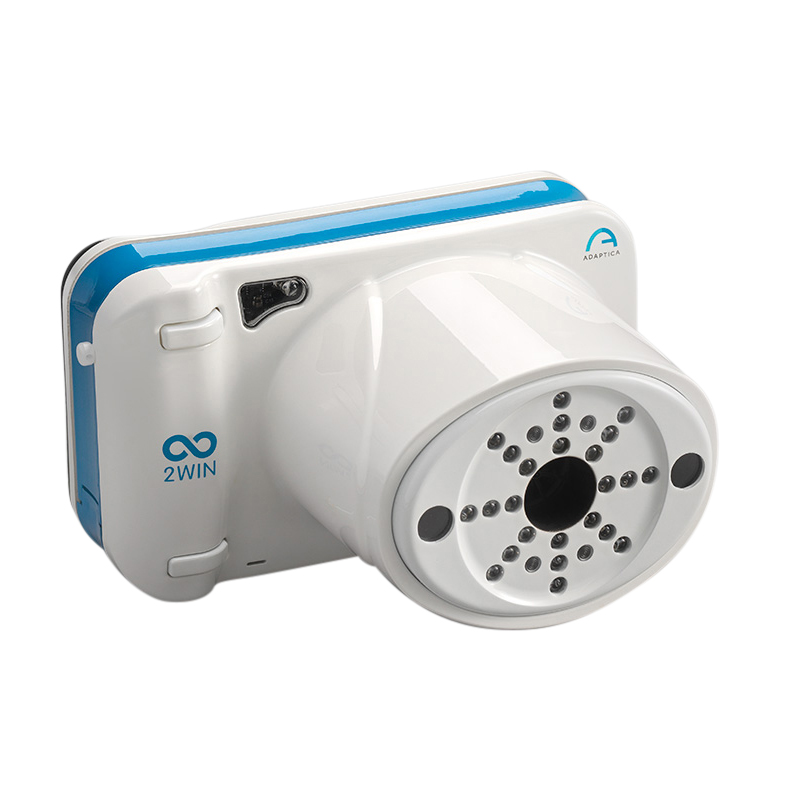

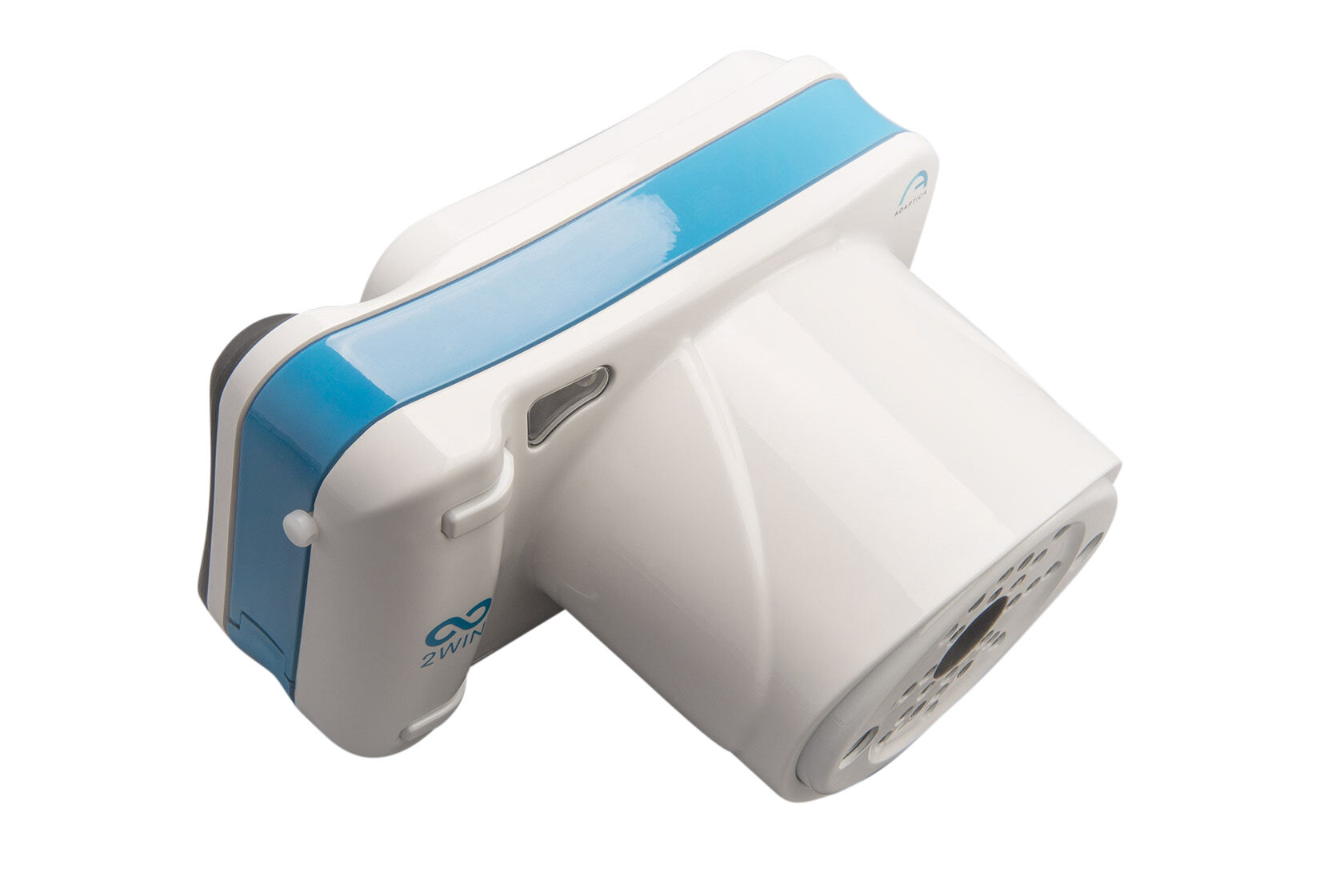

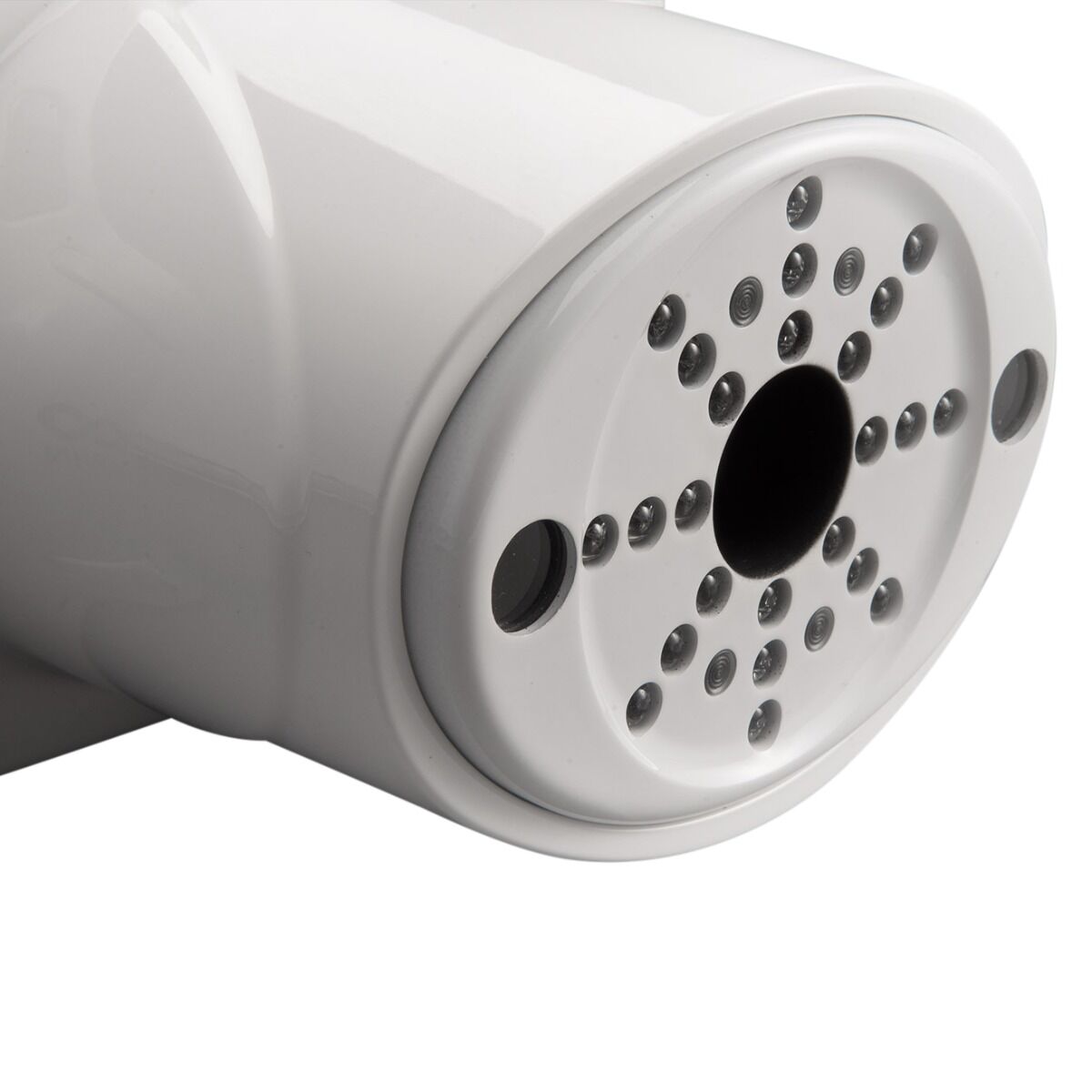

Titmus® 2WIN Binocular and Portable Vision Screener

Titmus® 2WIN Binocular and Portable Vision Screener

The 2WIN is a mobile binocular vision screener that measures both eyes at the same time, in real life vision conditions. It embodies the best and the most complete technologies to fully detect refractive errors, eye abnormalities and vision problems. 2WIN performs objective refraction of adults, children from 2 months age, seniors, impaired and non-cooperative patients. It works at 1m of distance from the patient, thus no direct contact is needed between the patient and the device.

• Operating Mode: Binocular/monocular
• Refraction Measurement: Automatic
• Working Distance: 1 m ± 5 cm
• Data Interface: Wi-Fi, USB, microSD card
• Sphere Range: +15, -15 D, step 0.25 D
• Cylinder Range: +5, -5 D, step 0.25 D
• Printer Interface: USB, Infrared (irda), Wi-Fi
• Cylinder Axis: 1° – 180°, step 1°
• Battery Charger: 110-220 Vac, 0.5 A
• Power: Rechargeable battery
• Pupil Size: Automatic detection, 4-11 mm, step 0.1 mm
• Size: 165x130x98mm
• Pupil Distance: Automatic detection, 30-120 mm, step 1 mm
• Display: 3.5’’
• Weight: 840 g (30 oz)
• Fixation Target: Built-in
• Acoustic Target: Built-in
• Measurement: Contactless. Patient at more than 1 m

Includes: Titmus® 2WIN screener, supplementary battery, battery-charger, metal case, USB cable, binocular occluder, and 2-year manufacturer warranty.

Titmus 2WIN Binocular and Portable Vision Screener Manual

Note: #24123 1-year extended warranty must be purchased at the same time as the device. Extended warranty may be purchased for up to 3 years of additional coverage.

Titmus® 2WIN is a specialized piece of equipment and is Not Returnable. Please call 1-800-323-2841 with any questions to assist you in making an informed decision.
